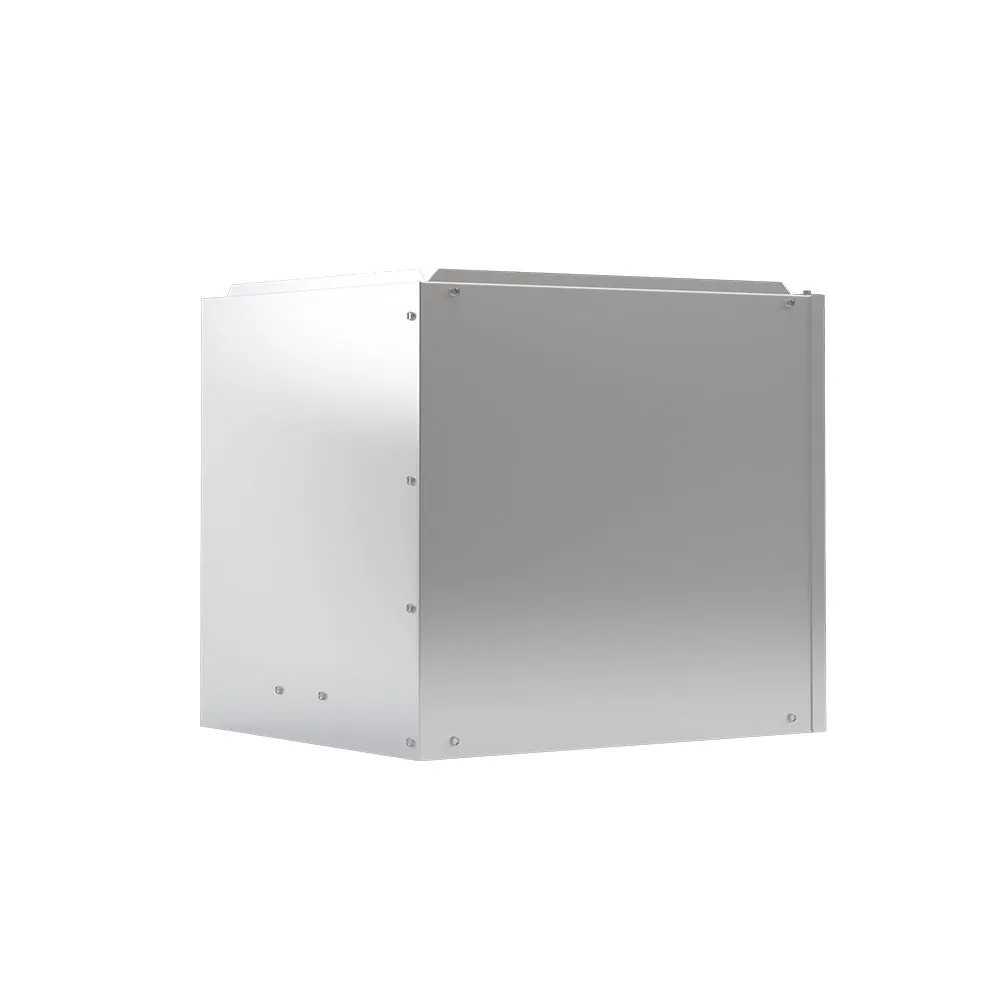

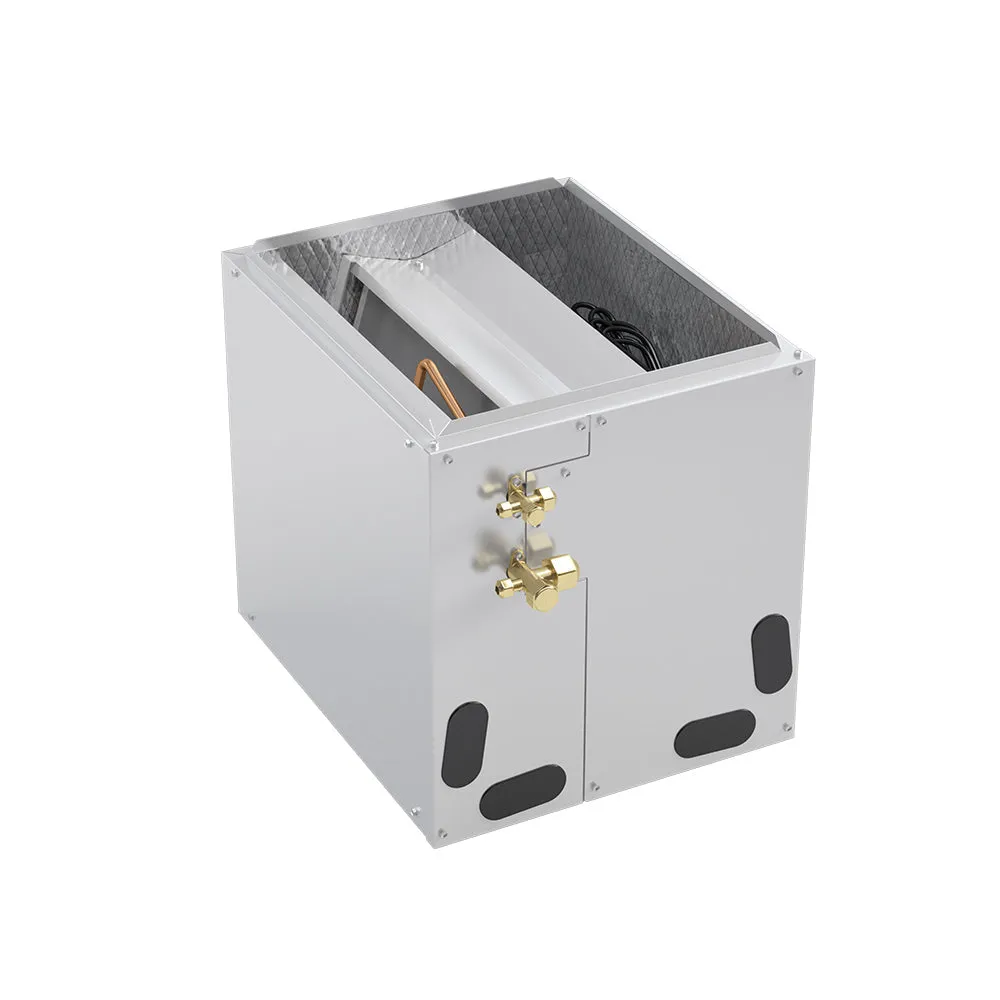

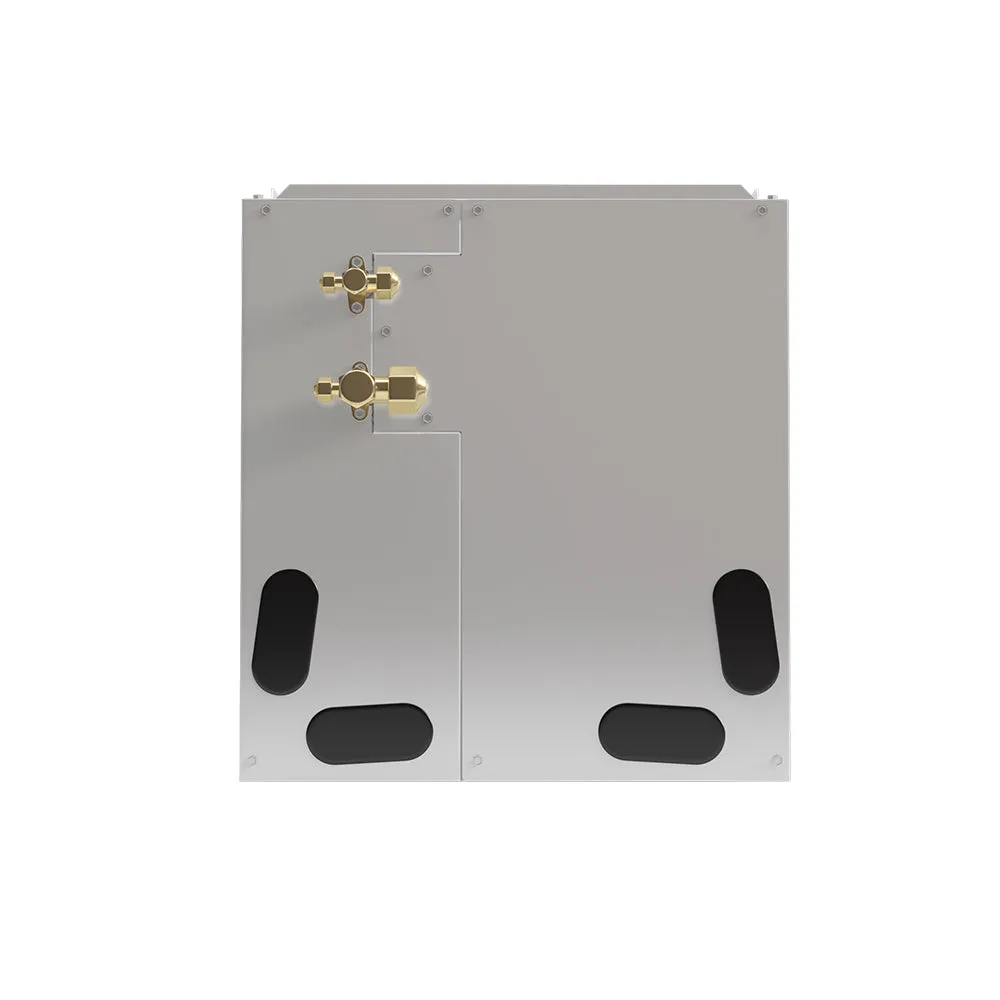

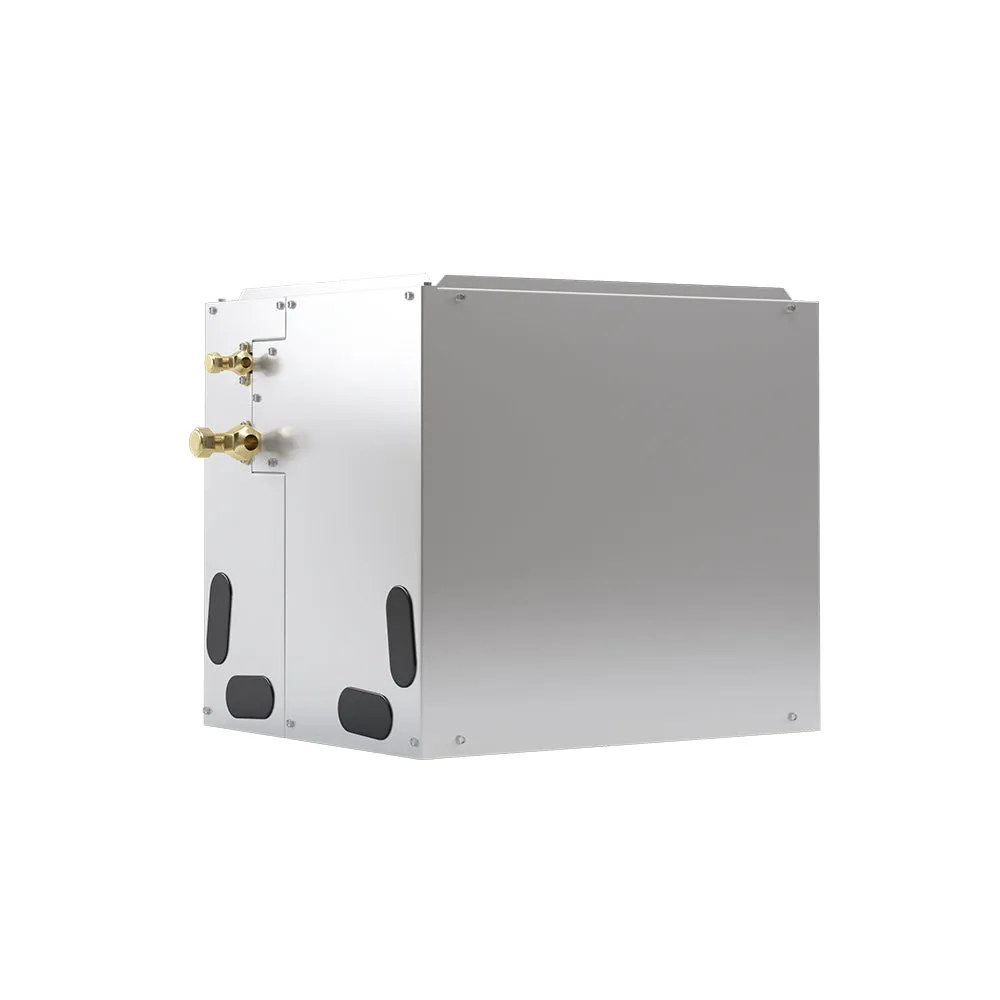

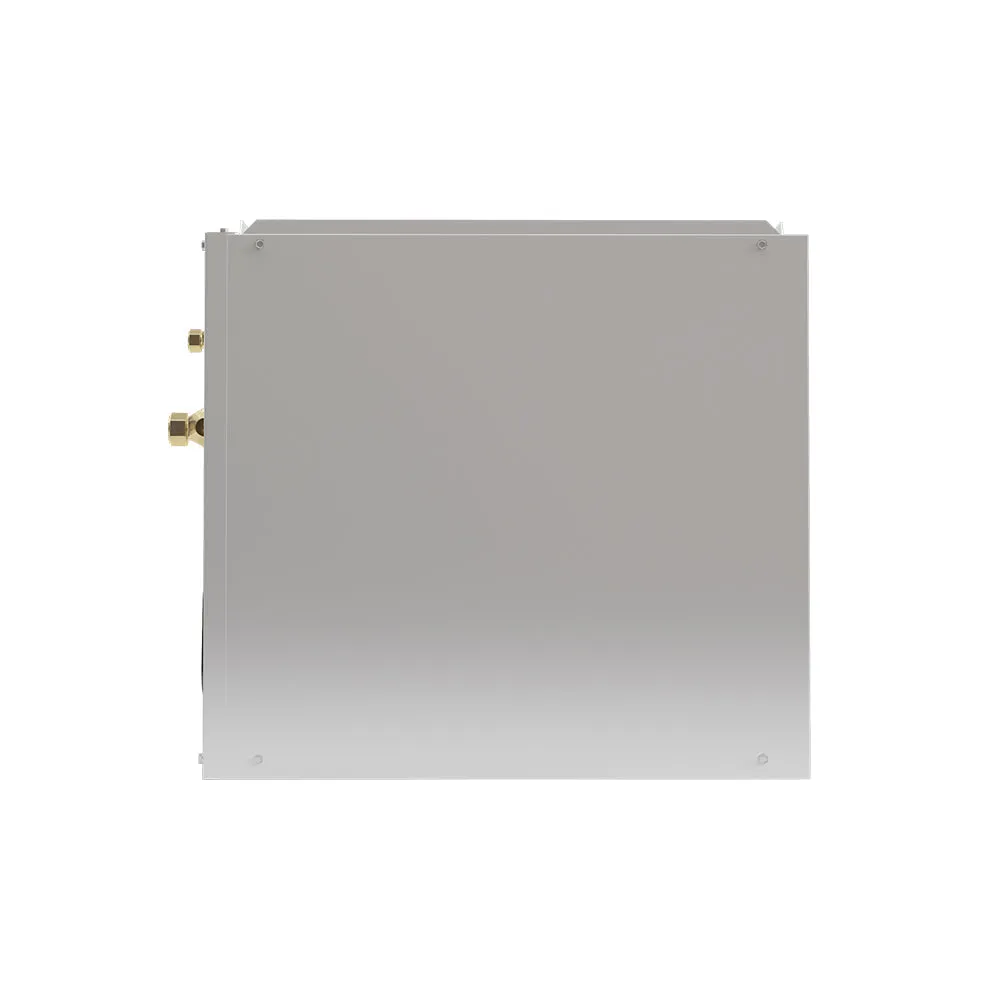

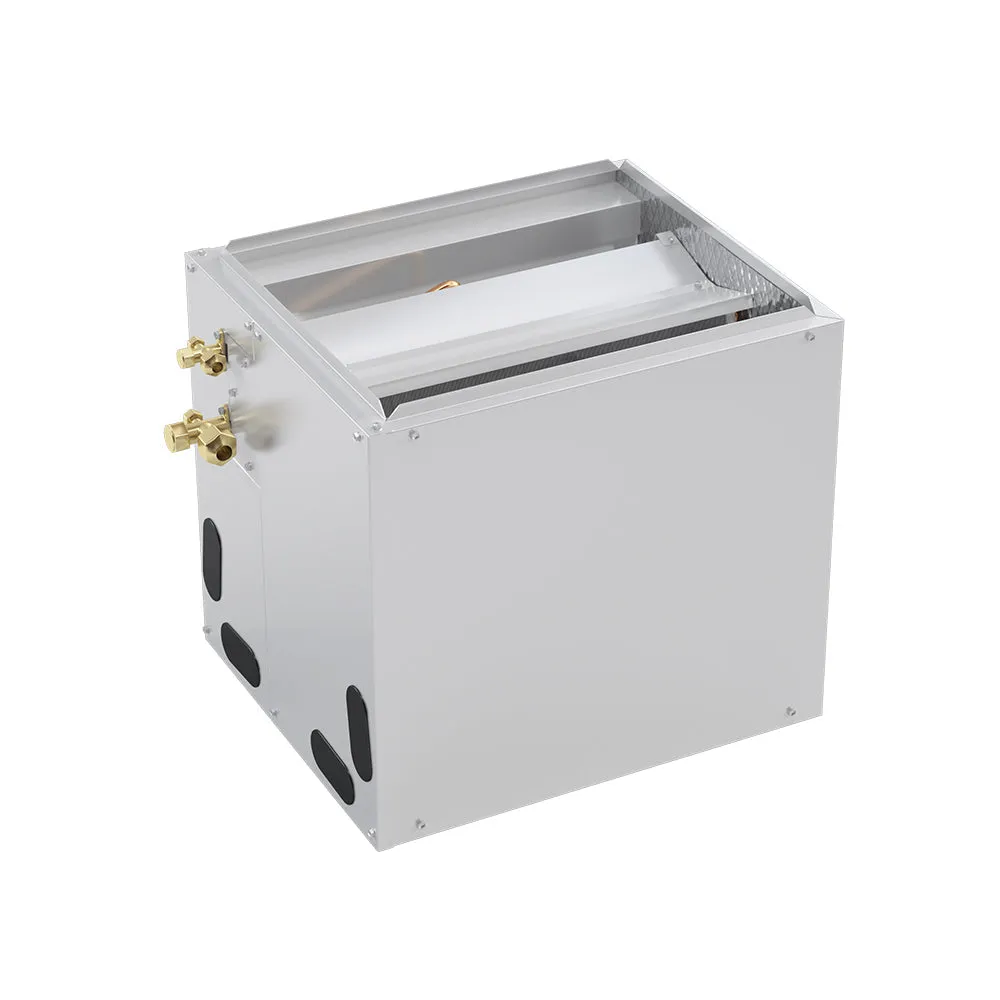

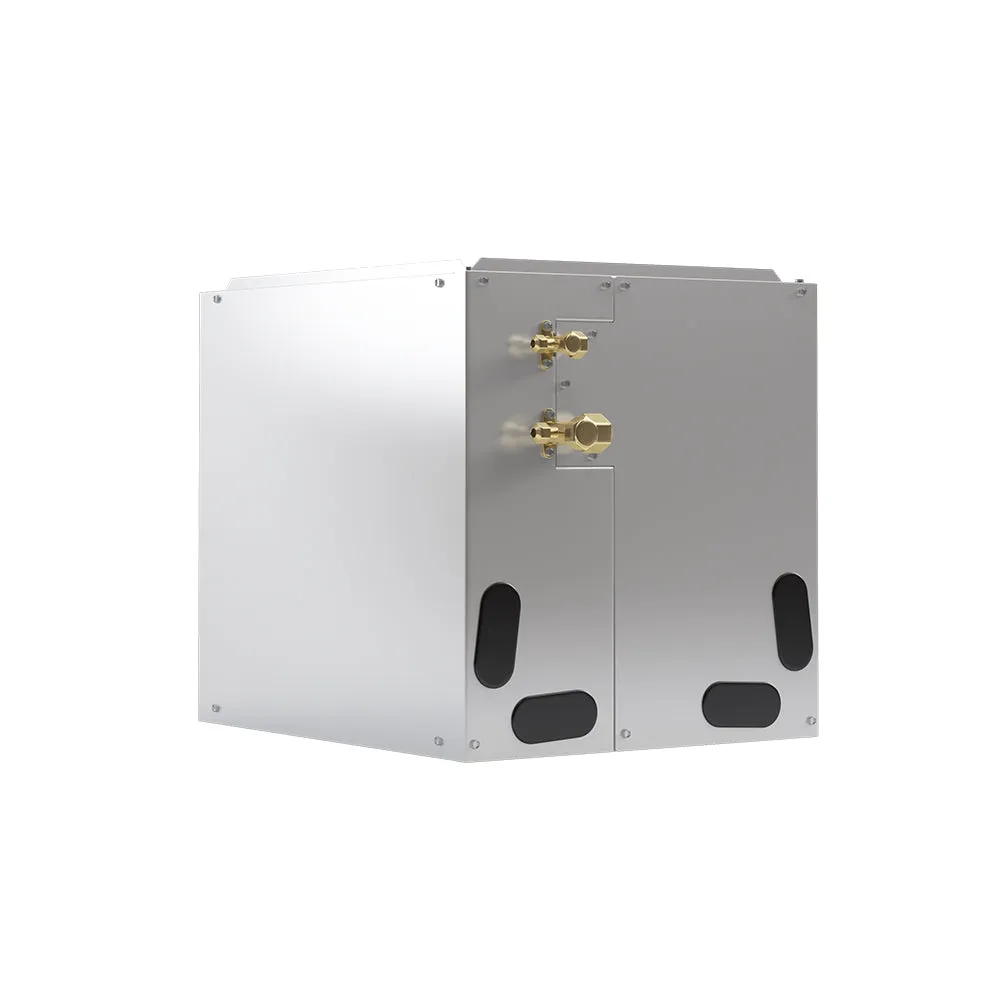

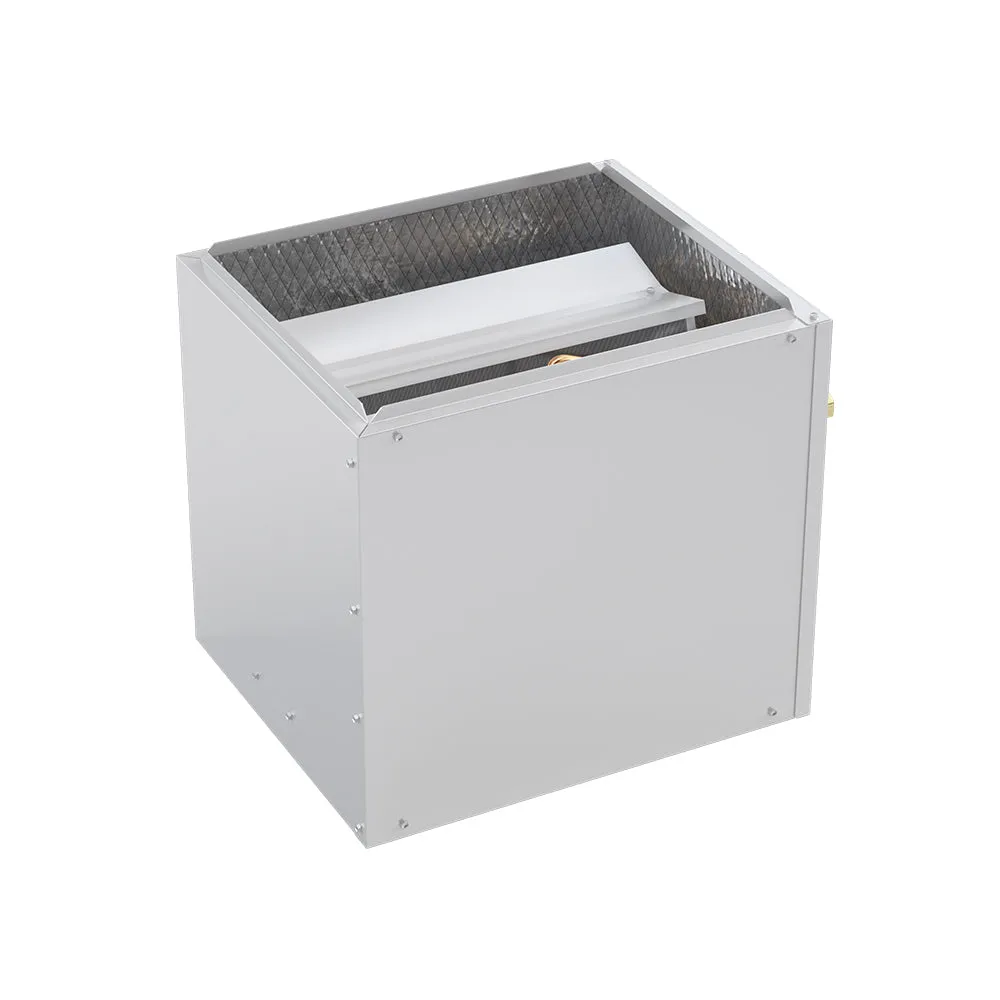

4 to 5 Ton MRCOOL® Universal Evaporator Coil - Quick Connect - Multiposition - 24.5" Cabinet
The Universal A-Coil is a versatile and adaptable option for your home comfort. It can be paired with other Universal units or as a replacement for an outdated, ineffective A-coil in your current system. The Universal A-Coil offers quieter operation and quick installation than many competitor models. It also features a liquid pipe designed to guard against excessive condensation. That could save you from costly property damage. It is equipped with multiple safeguards including protection against, high-pressure, high-discharge temperature, overload, IPM, and PFC in order to ensure effective and efficient operation for the life of the unit.
Specifications:
| BRAND | MRCOOL® |
| SERIES | Universal Series A-Coils |
| MODEL | MDUCC15048060 |
| UPC | 810063867539 |
| UNIT TYPE |
Universal Evaporator Coils |
| SEER | 4 Ton Mode: 18, 5 Ton Mode: 17 |
| EER | 11.7 |
| CFM | 4 Ton Mode: 1230, 5 Ton Mode: 1510 |
| TONNAGE | 4 or 5 Ton |
| COOLING CAPACITY (BTU) |
4 Ton Mode: 48000, 5 Ton Mode 54000 |
| REFRIGERANT TYPE |
R-410A |
| LIQUID LINE SIZE |
3/8 |
| SUCTION LINE SIZE |
3/4 |
| NET DEPTH (IN) |
21.25 |
| NET HEIGHT (IN) |
28.50 |
| NET WIDTH (IN) |
24.50 |
| NET WEIGHT (LBS) |
95.00 |
| GROSS DEPTH (IN) |
27.13 |
| GROSS HEIGHT (IN) |
31.25 |
| GROSS WIDTH (IN) |
28.13 |
| GROSS WEIGHT (LBS) |
110 |
