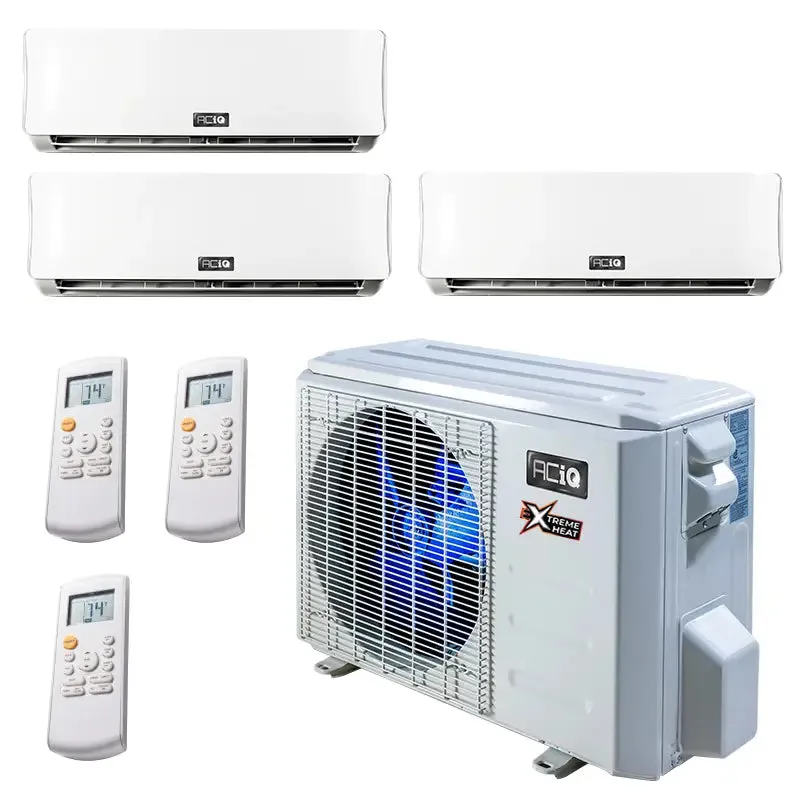

30,000 BTU 23 SEER2 ACiQ 3-Zone Wall Mounted Mini Split System - Extreme Heat - WiFi Enabled - 9 9 12
ACiQ's multi zone mini split systems are designed to give you intelligent technology and superior comfort, all at a reasonable cost. With the ACiQ IntelliHeat multi zone series 30,000 BTU 23 SEER2 3-Zone Wall Mounted Mini Split System, you get higher SEER and better low ambient (hyper heat) performance than the competition.
Benefits & Features
- Intelligent comfort at an affordable cost
- Ideal for two spaces up to 450 square feet for the 9K air handlers, and one space up to 600 square feet for the 12K air handler (depending on climate)
- Designed to function with up to 3 attached air handlers
- Efficient cooling from -5°F to 122°F outdoor temperatures
- Efficient heating from -22°F to 75°F outdoor temperatures
- Integrated Extreme Heat technology with base pan heater
- Gold Fin full-protection coating
- Quiet operation at even the highest workloads
- WiFi capable using free Net Home Plus app, Google Home or Alexa
- Enhanced Dry mode, intelligent sleep mode, power save mode.

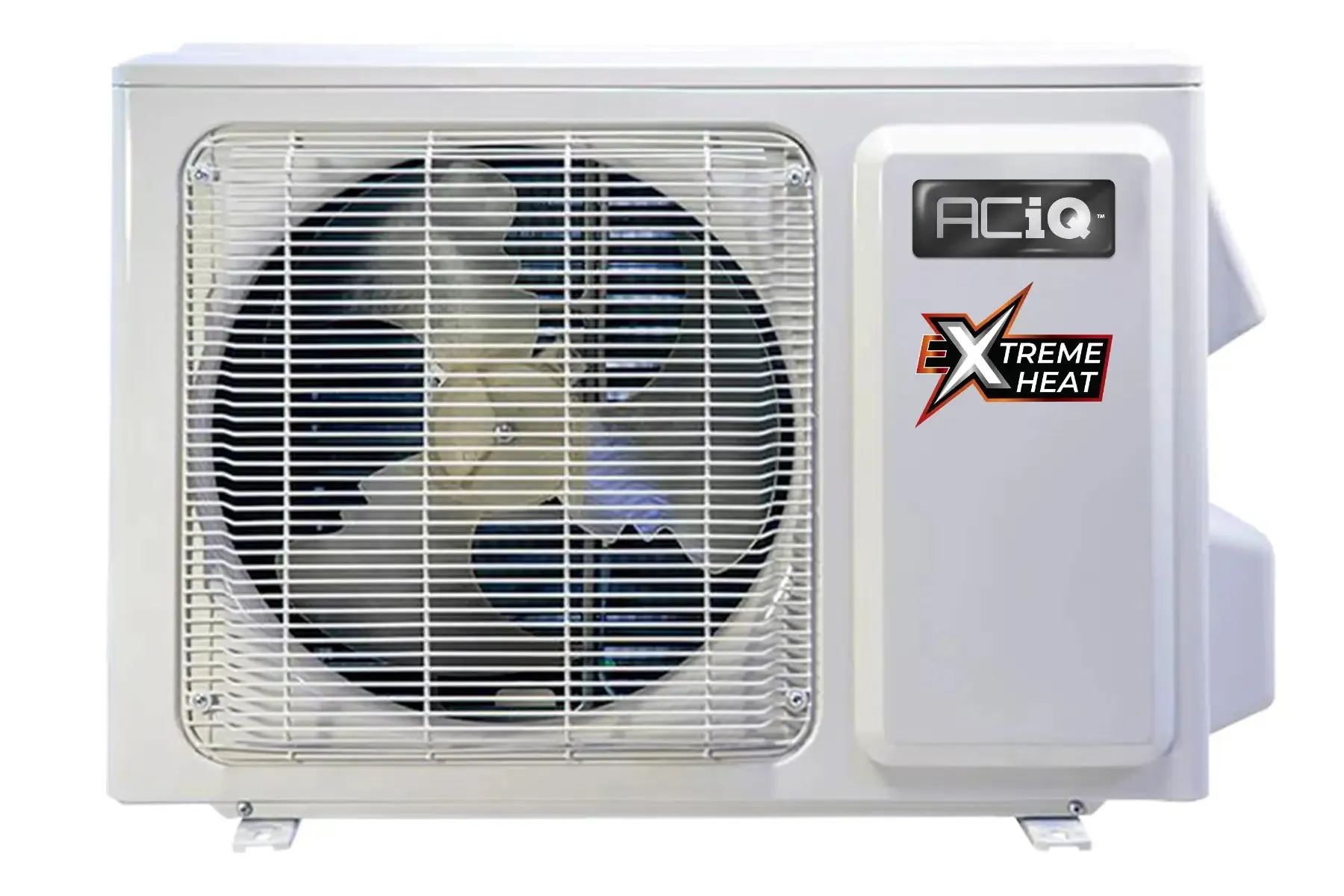

Condenser Specifications:
| Brand | ACIQ |
| SKU | ACIQ-27Z-HH-M3B |
| Refrigerant Charge | 75' |
| Weight (in lbs) | 167.550000 |
| AHRI Certificate Number | 207825579 |
| HSPF | 10.4 |
| Cooling BTU | 28000 BTU |
| Heating BTU | 28000 BTU |
| Decibel Level (dBA) | 62.3 |
| Electric Heat | Heat Pump |
| Energy Star | Yes |
| Refrigerant | R410A |
| SEER1 (Efficiency) | 21-22 |
| SEER2 (Efficiency) | 23 |
| EER | 13 |
| Compressor Type | Rotary |
| Liquid Line | 1/4" (3) |
| Suction Line | 3/8" (2) 1/2 (1) |
| Electrical | 208/230V 1 Phase 60 Hz |
| Max Breaker Size | 45 Amps |
| Min. Breaker Size | 30 Amps |
| Tonnage | 2 Ton to 2.5 Ton |
| BTU/Tonnage | 27,000 BTU/2.25 Ton |
| Mini-Split Type | Wall Mounted |
| Zone Compatibility | Multi Zone |
| Ambient Temperature Range | -22 ~ 122 |
| Height | 31-9/10" |
| Width | 37-1/4" |
| Depth | 16-1/5" |
| Warranty | 12 year compressor, 7 year parts with online registration |
| Safety Information | PROPOSITION 65 WARNING |

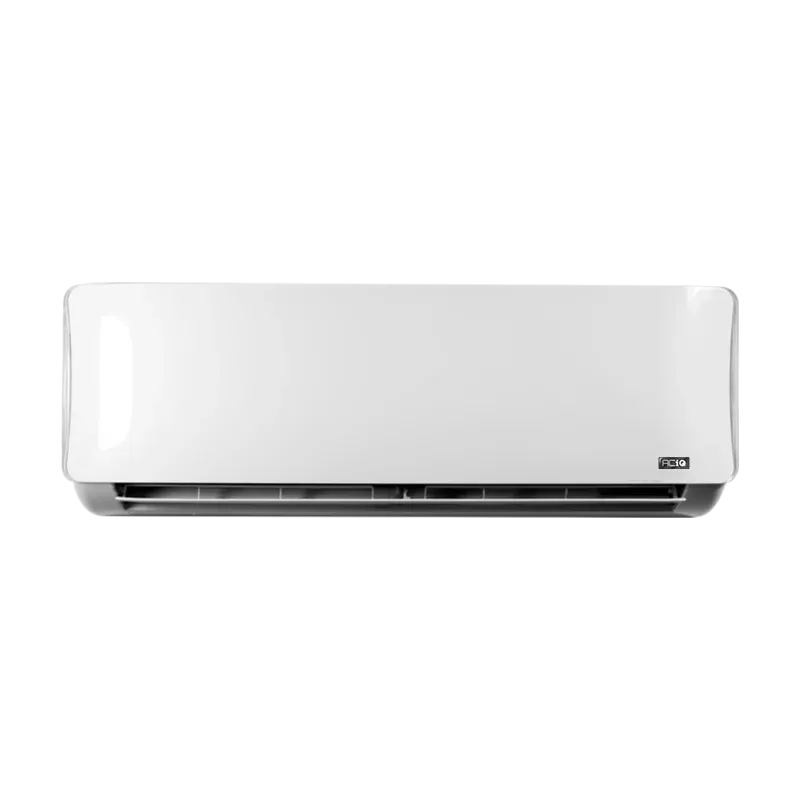

9K BTU Air Handler Specifications:
| Brand | ACIQ |
| SKU | ACiQ-09W-HH-MC |
| Weight (in lbs) | 22.700000 |
| Cooling BTU | 9000 BTU |
| Heating BTU | 10000 BTU |
| Maximum CFM | 247 |
| Decibel Level (dBA) | 38 |
| Electric Heat | Heat Pump |
| Refrigerant | R410A |
| SEER1 (Efficiency) | 23-24 |
| SEER2 (Efficiency) | 22.3 |
| Liquid Line | 1/4" |
| Suction Line | 3/8" |
| Electrical | 208/230V 1 Phase 60 Hz |
| BTU/Tonnage | 9,000 BTU/0.75 Ton |
| Mini-Split Type | Wall Mounted |
| Zone Compatibility | Multi Zone |
| Height | 11-4/5" |
| Width | 33-2/5" |
| Depth | 9-1/5" |
| Warranty | 12 year compressor, 7 year parts with online registration |
| Safety Information | PROPOSITION 65 WARNING |
12K BTU Air Handler Specifications:
| Brand | ACIQ |
| SKU | ACIQ-12W-HH-MC |
| Weight (in lbs) | 22.700000 |
| Cooling BTU | 12000 BTU |
| Heating BTU | 12000 BTU |
| Maximum CFM | 324 |
| Decibel Level (dBA) | 38 |
| Electric Heat | Heat Pump |
| Refrigerant | R410A |
| SEER1 (Efficiency) | 21-22 |
| SEER2 (Efficiency) | 22.3 |
| Liquid Line | 1/4" |
| Suction Line | 1/2" |
| Electrical | 208/230V 1 Phase 60 Hz |
| BTU/Tonnage | 12,000 BTU/1 Ton |
| Mini-Split Type | Wall Mounted |
| Zone Compatibility | Single Zone |
| Height | 11-4/5" |
| Width | 33-2/5" |
| Depth | 9-1/5" |
| Warranty | 12 year compressor, 7 year parts with online registration |
| Safety Information | PROPOSITION 65 WARNING |
